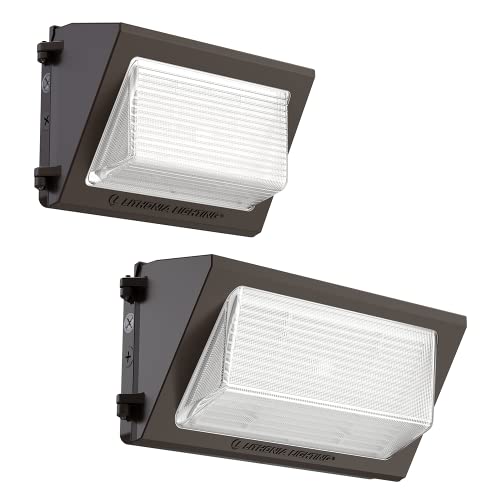

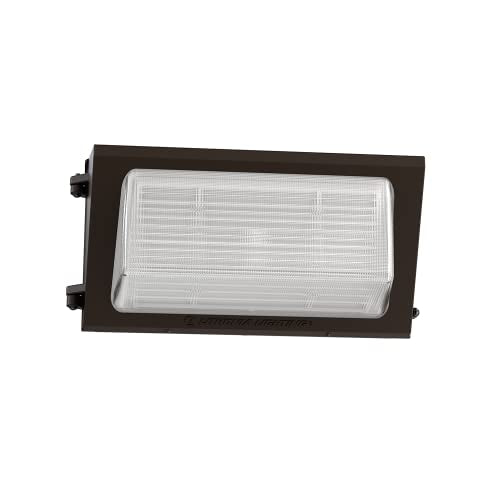

18-IN-1 LED WALL LIGHTS: The Lithonia Lighting LED Wall Pack gives ultimate versatility to installers by offering 18 configurations in one product; Adjust brightness, select color temperature, and toggle the dusk to dawn light photocell sensor on or off

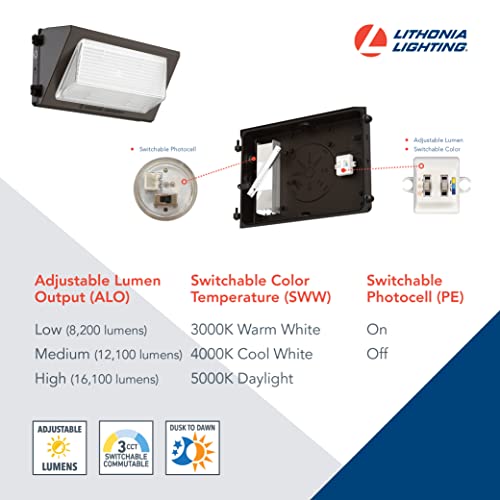

CONFIGURABLE SECURITY LIGHTS: Energy-efficient LED lights provide bright light with low/medium/high (8,200/12,100/16,100 lumens) brightness options; Color temperature is selectable between 3000K neutral/4000K cool/5000K daylight; LEDs last over 50,000 hours

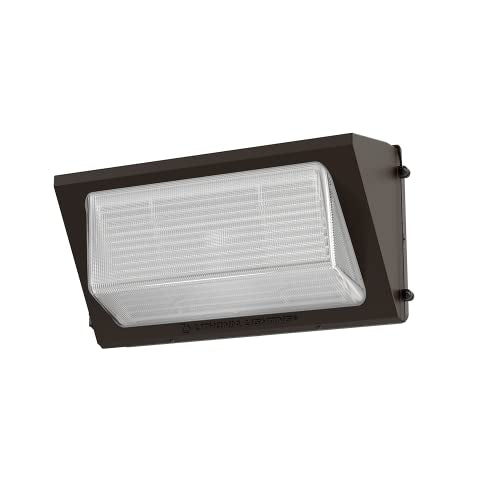

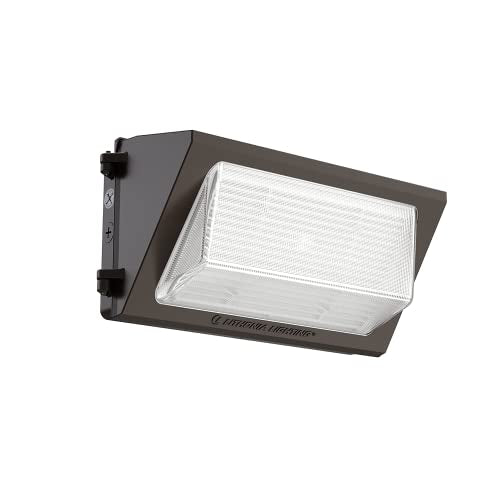

DURABLE OUTDOOR WALL LIGHTS: Built with rugged die-cast aluminum housing and a borosilicate glass lens; Resists weather with IP65 wet-location rating; Door is hinged on the side and can be detached for easy installation and service

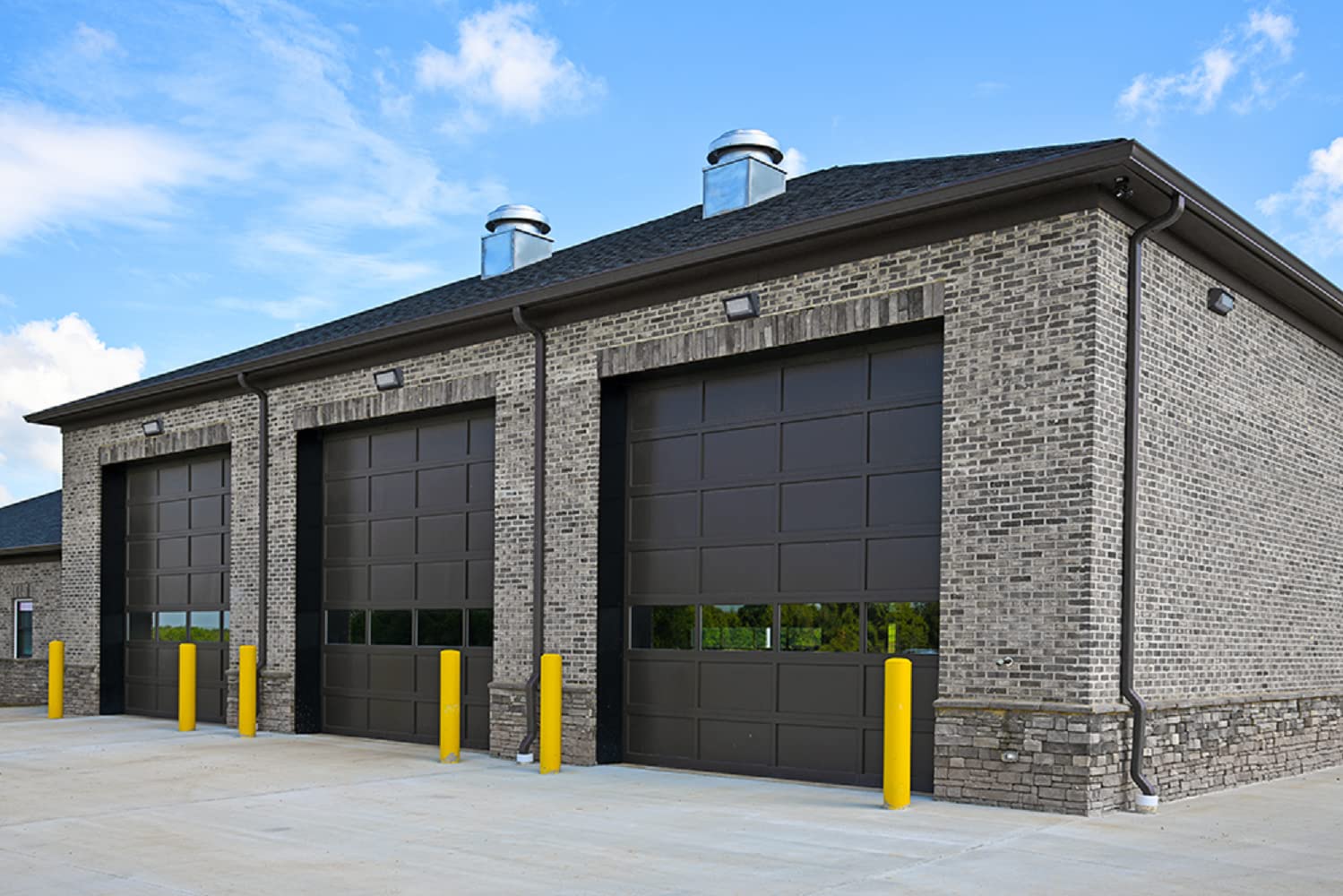

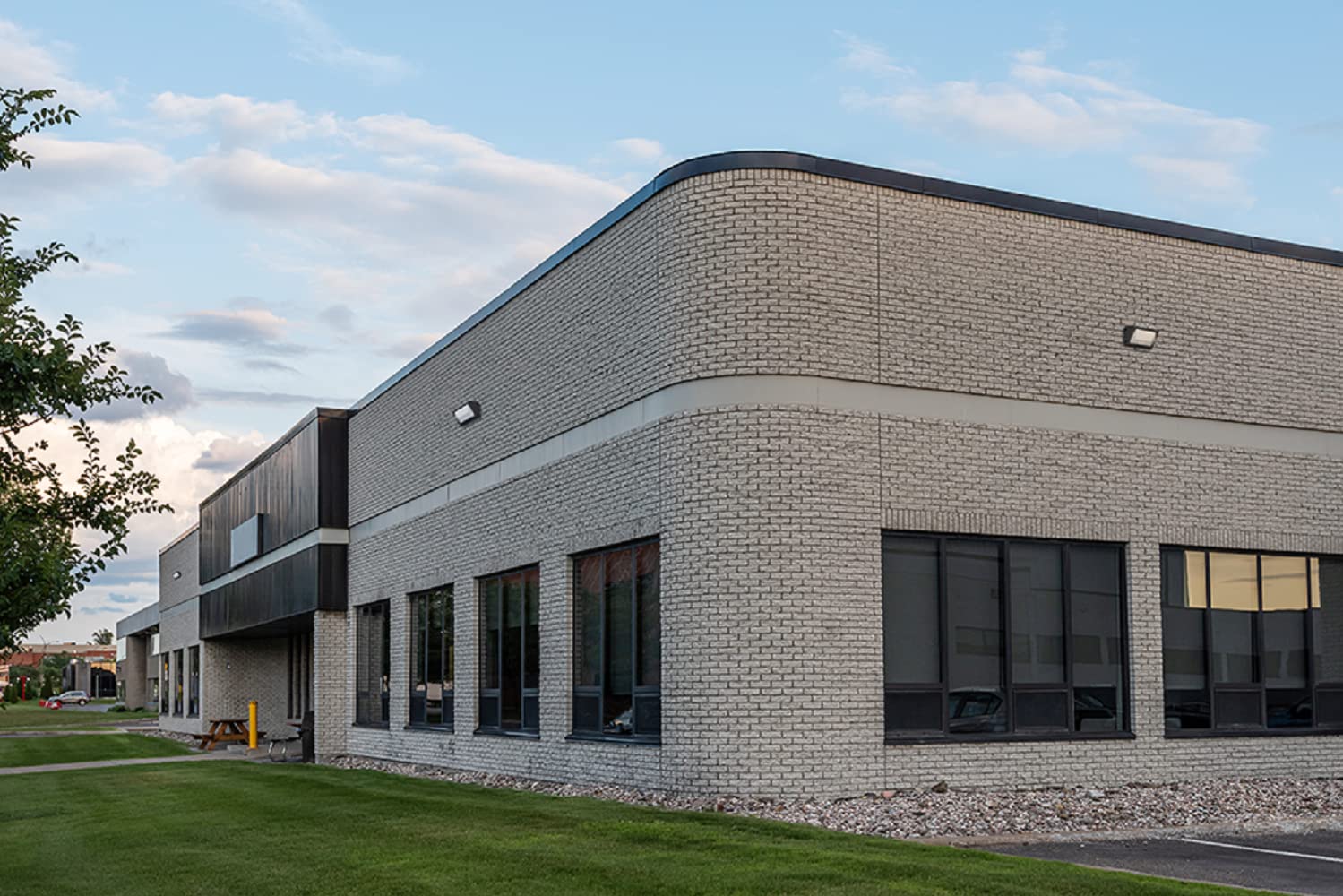

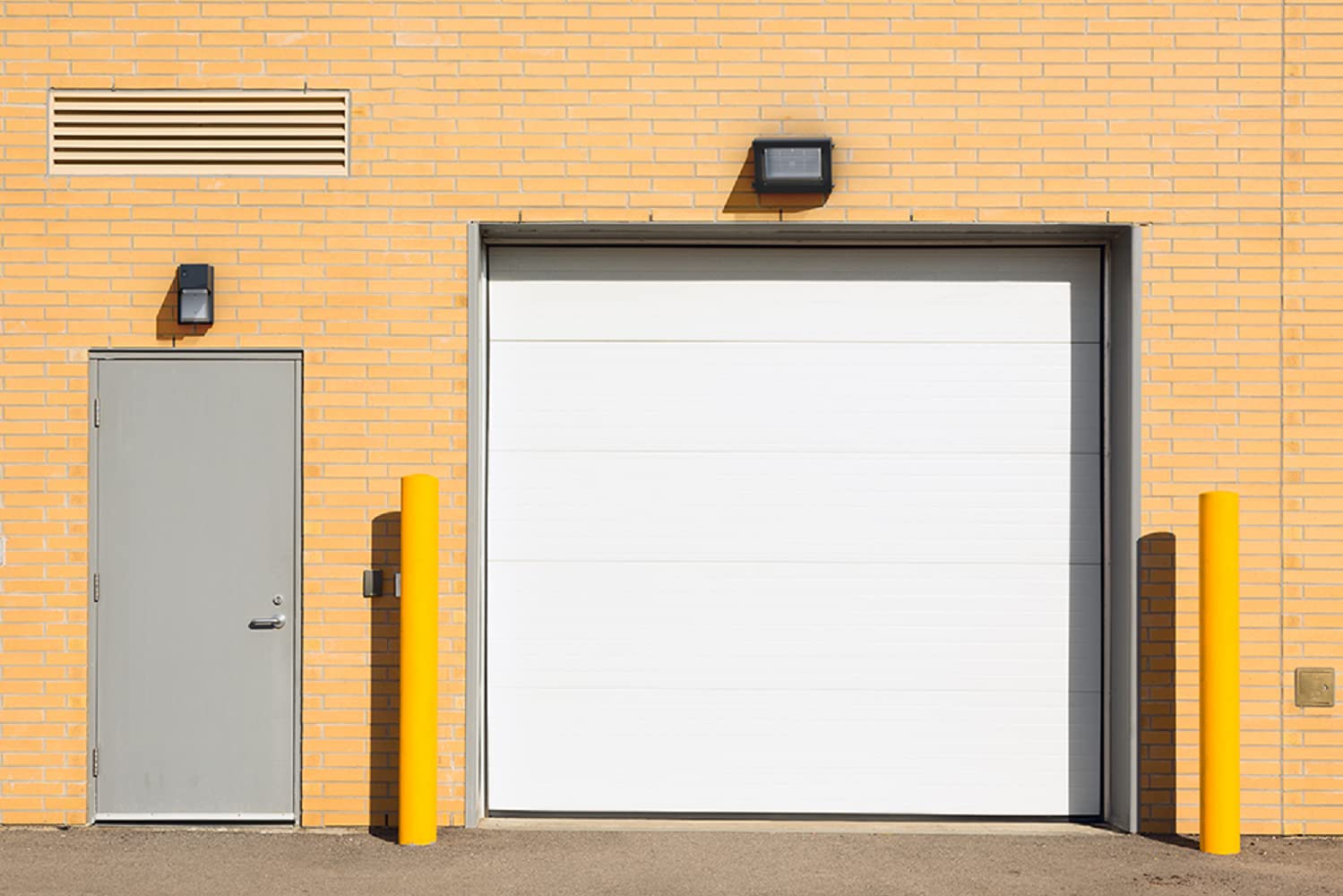

EASY WALL INSTALLATION: Classic appearance and traditional shape to help maintain building aesthetics when replacing existing exterior lights; Designed for surface mounting above 4'; Fits standard 4” outlet boxes or conduit entries; Wet location rated

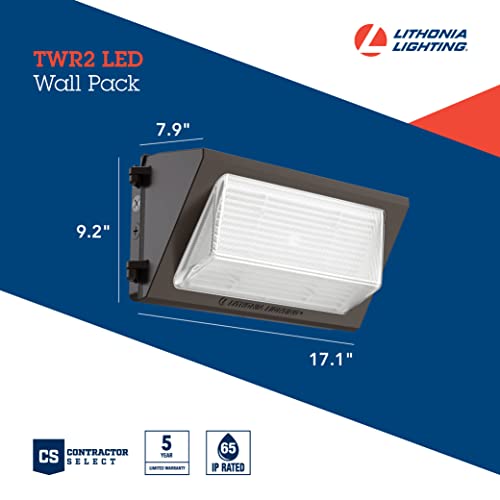

SPECIFICATIONS: Measures 17.1” W x 9.2” H x 7.9” D; Operates on 120-347V UVOLT input; 0-10V Dimming; DLC qualified and UL listed; IP65 rated; 5-year limited warranty; Replaces up to 400W HID fixtures
Specifications
Brand
Lithonia Lighting
Manufacturer
Acuity Brands Lighting
Model
TWR2 LED ALO SWW2 UVOLT PE DDBTXD
Material
Aluminum
Color
Dark Bronze
Size
17-inch
Style
16100 Lumens
Product Type
LIGHT_FIXTURE
Included Components
Mounting Hardware
Special Features
['Energy Efficient', 'Adjustable Color Temperature']
Item Highlights
Bronze Outdoor Light Fixture, 3000K/4000K/5000K CCT, Adjustable Lumens, UVOLT (TWR2 LED ALO SWW2 UVOLT PE DDBTXD)
Item Type Keyword
wall-porch-lights
Item Dimensions
H: 234 / L: 201 / W: 434 (Weight: 6350)
Package Dimensions
H: 249 / L: 508 / W: 279 (Weight: 6759)
unit
Description

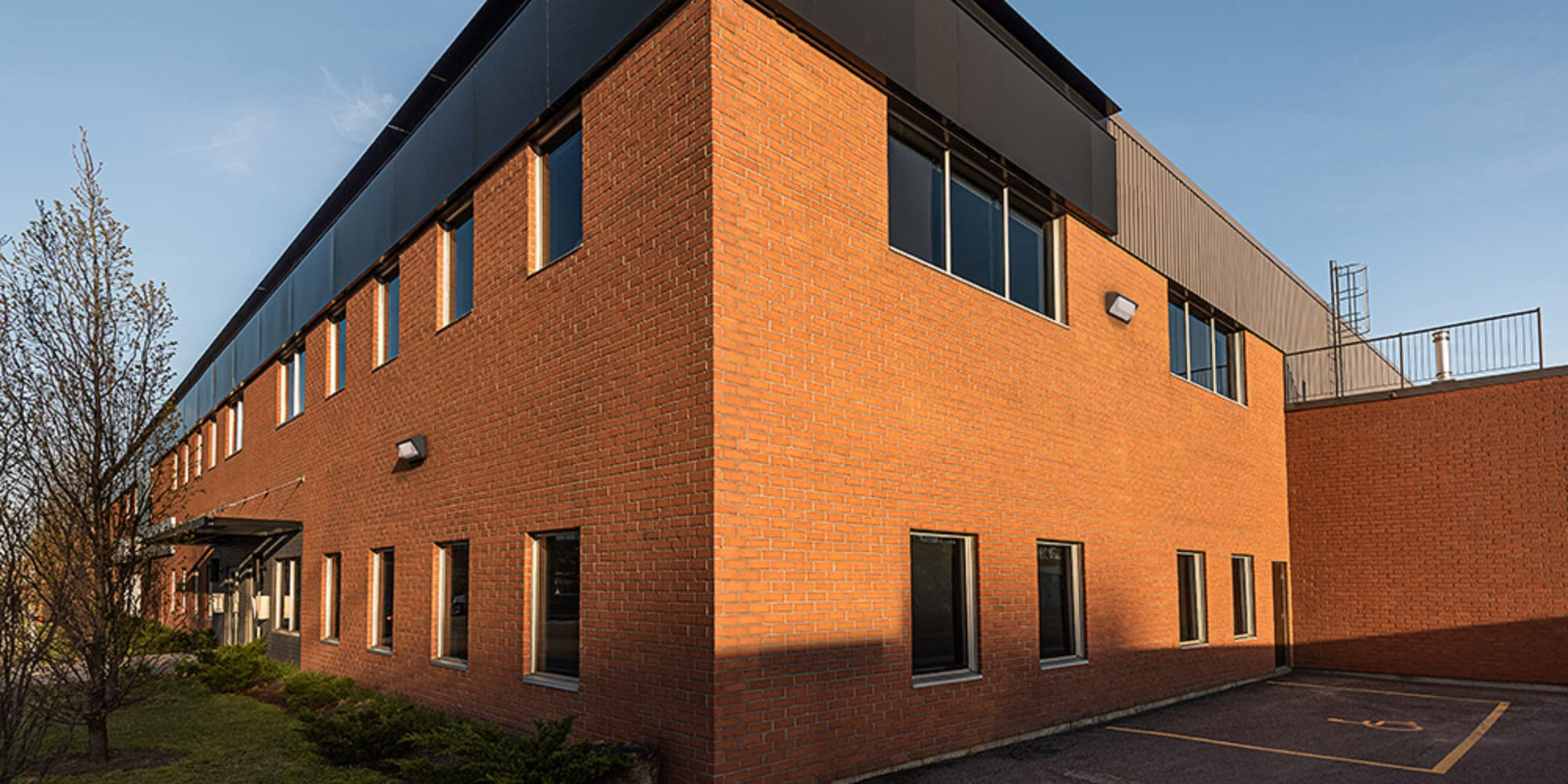

Classic Appearance. Modern Features. The TWR LED wall pack luminaires offer a classic appearance and traditional shape to help maintain building aesthetics when replacing the entire site or only a portion of a building’s wall packs. Loaded with modern features, TWR LED provides ultimate versatility with 18 configurations in one SKU, making on-the-spot reconfiguring quick and easy. The latest generation of LED’s on the TWR wall packs deliver an expected service life of more than 20 years and eliminate frequent lamp and ballast replacements associated with traditional technologies. Choose Your Options On the Fly: The TWR LED outdoor wall lights include three adjustable lumen settings, three switchable color temperatures, and a switchable photocell to provide superior flexibility for project-specific customization that is easy to adjust on location. Featuring three selectable lumen outputs—8,200, 12,100, and 16,100 lumens—and adjustable color temperatures at 3000K, 4000K, and 5000K, this fixture adapts to virtually any site requirement. The integrated photocell supports dusk-to-dawn operation and can be turned off when not needed. The TWR replaces up to a 400W HID while saving up to 86% in energy, making it a cost-effective upgrade for exterior walls, loading docks, driveways, or commercial perimeters. Built to last, it features die-cast aluminum construction, IP65 weatherproofing, and a borosilicate glass lens that preserves its traditional wall pack appearance while housing highly efficient LEDs with an expected 50,000-hour lifespan. Its universal voltage input (120–347V) and 0–10V dimmable driver make it flexible for a wide range of projects. The 17.1” W x 9.2” H x 7.9” D fixture is easy to install over standard junction boxes or conduit hubs. Backed by a 5-year limited warranty, it’s the ideal LED wall-mounted solution for any demanding outdoor lighting need.
