DMX 1024 Stage Light Controller

Key Features

• 1.dmx controller 1024 DMX512 Channels & Universal Fixture CompatibilityFeatures professional DMX512/1990 standard with 1024 channels and optically isolated output ports for maximum anti-interference. Hook up to 100 intelligent lighting fixtures, dimmers or LED lights (42 channels max per fixture), and it’s fully compatible with R20 format fixture libraries (works with over 3000 fixture models) — ideal for every stage setup out there.
• 2.dmx512 controller Built-in Shape Generator & Versatile Lighting ProgrammingIntegrated Shape Generator cranks out dynamic lighting effects like circles, waves, rainbows and more, with support for effect layering, warping, spread and symmetry. Store up to 300 playback programs and 40 overlapping scenes, with one-step/multi-step recording. Craft immersive, custom lighting for any event in minutes.
• 3.dmx light controller 3 Sync Modes & One-Touch Light Show FunctionChoose from Auto1, Auto2 and Music Sync modes — the light syncs perfectly with your music’s beat via the 6.35mm audio input. Comes with MIDI in/out ports for parallel sync across multiple consoles, and the one-touch light show lets you save 20 auto-playback programs. Supports external MIDI time code + internal time code — no computer required for pro-level light shows!

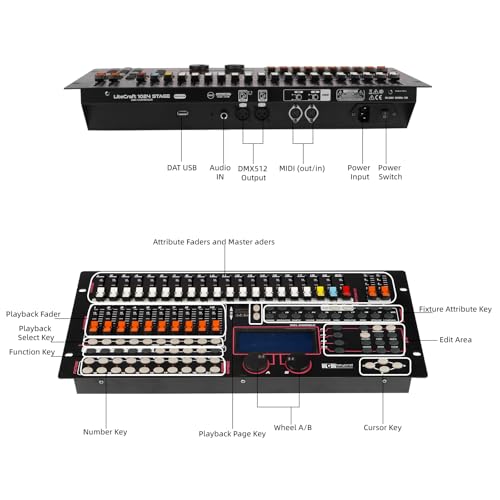

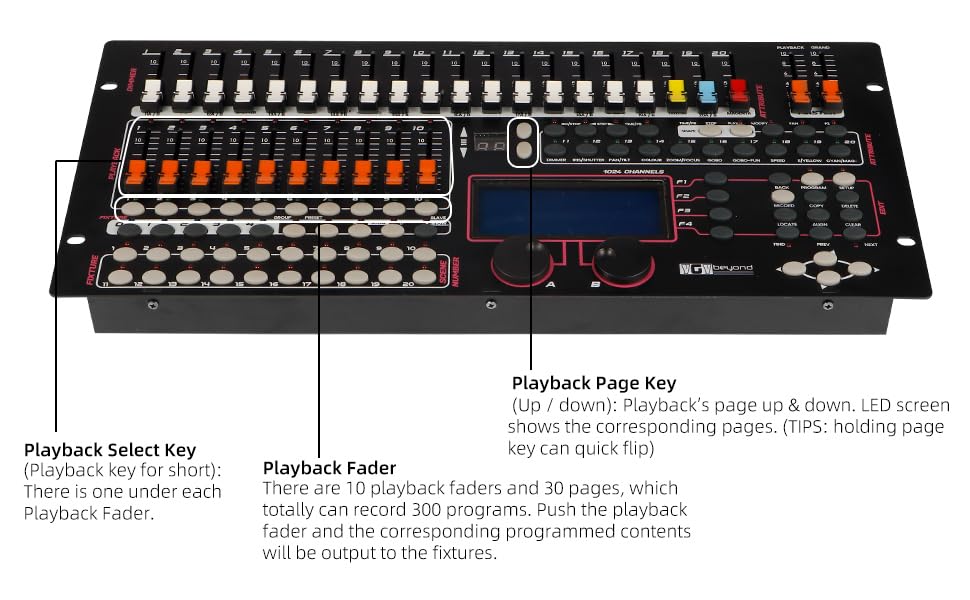

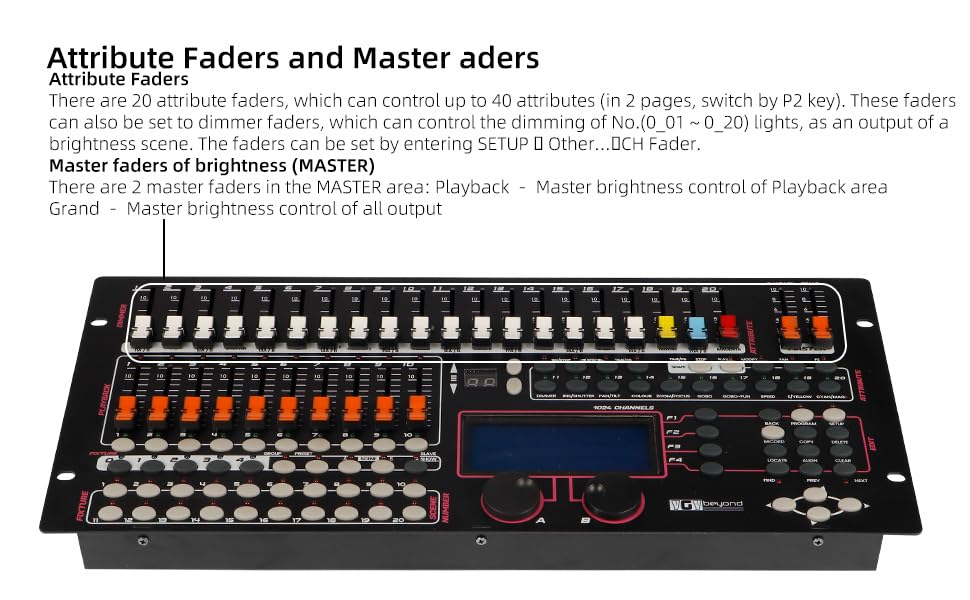

• 4. dj light controller User-Friendly Control Panel & Full On-Site InterfacesEasy-to-use Chinese-English backlit LCD display for clear, intuitive operation. 20 attribute faders switch between 2 pages (40 total attributes) and 10 playback faders expand to 30 pages (300 total programs) for fast, seamless control. Includes a USB port (data backup, library updates, software upgrades), gooseneck lamp port and 6.35mm audio input — has all the ports you need for on-stage use.

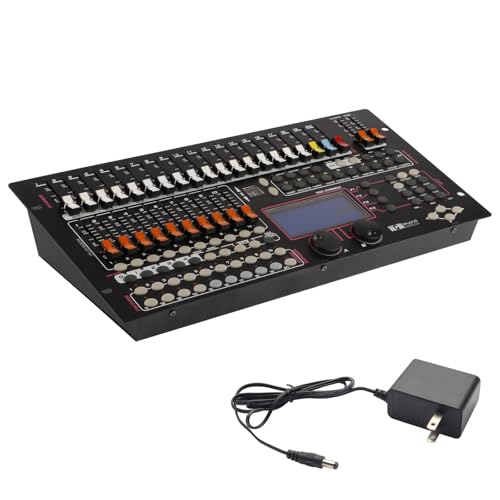

• 5.stage lighting equipment & accessories Global Wide Voltage & Reliable Data ProtectionRuns on a 100-240V AC wide voltage switching power supply (50/60Hz, 15W) with a protective ground wire — works anywhere in the world and ensures safe operation. Built-in data lock and login password prevent accidental program changes, and the lighting priority system lets manual fixture control take top priority for flexible, on-the-fly adjustments.
