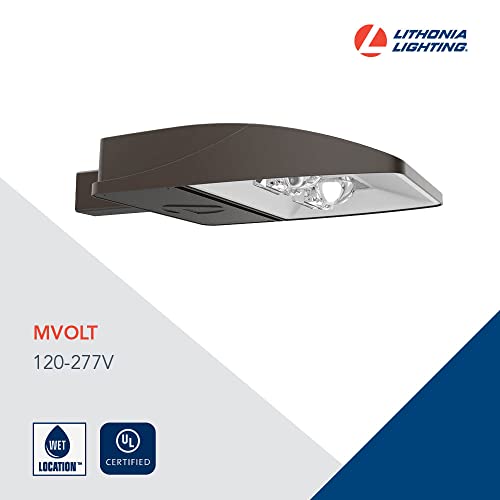

Outdoor ESX1 LED P2 5000K Type 3 Optic MVOLT Universal Pole Mounting Bi (Pole Mount / 21.7 W x 12 L x 8.9 H | Universal Pole Mount / 5000K Daylight (8,000 & 14,000 Lumens))
Bi-level ALO switch and reversible arm maximizes flexibility in the field
Delivering 8,000 to 25,000 lumens the ESX1 LED replaces 150W to 400W metal halide luminaires while saving up to 70%+ energy costs
Hardwired on/off capability only
UL listed to meet US and Canadian standards, suitable for wet locations, rated for -40°C minimum ambient and listed as a DesignLights Consortium (DLC) qualified product

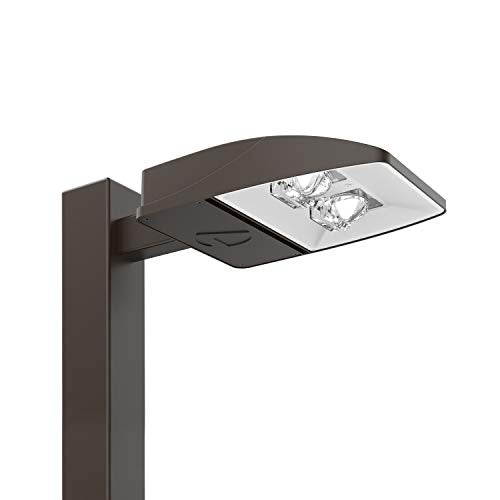

MVOLT driver operates on any line voltage from 120-277V (50/60Hz) and can be mounted using the universal mounting arm allowing it to mount on both round and square poles, with a minimum of 3.5 inch pole or larger, a wall mount bracket is also available
Specifications
Brand
Lithonia Lighting
Manufacturer
Acuity Brand Lighting
Model
ESX1 LED P2 50K R3 MVOLT UPA BLS DDBXDM2
Material
Aluminum
Color
5000K Daylight (8,000 & 14,000 Lumens)
Size

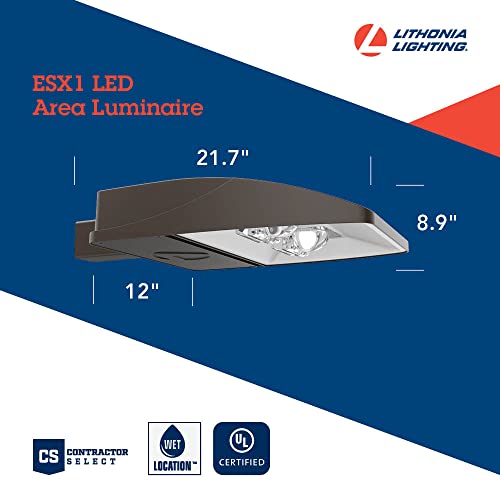

21.7 W x 12 L x 8.9 H | Universal Pole Mount
Style
Pole Mount
Product Type
LIGHT_FIXTURE
Included Components
Product Set
Item Type Keyword
flood-lighting
Item Dimensions
H: 74 / L: 505 / W: 305
Package Dimensions
H: 102 / L: 533 / W: 330 (Weight: 5443)
unit
Description

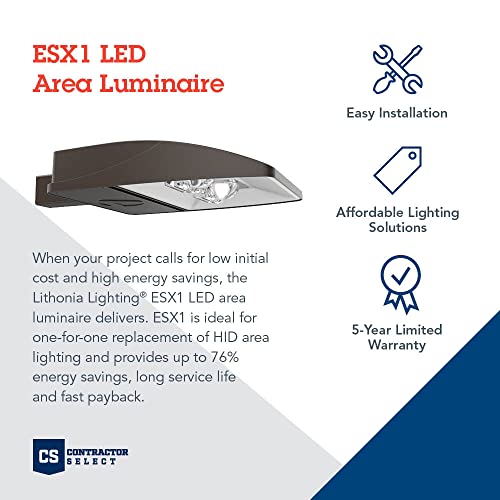

The ESX LED area luminaire provides the combination of best product value, best price and best delivery. ESX is ideal for one-for-one replacement of HID area lighting and provides up to 76% energy savings, long service life and fast payback. All ESX luminaires feature adjustable light output, providing two light levels from one product, allowing greater flexibility while helping reduce inventory costs. The luminaires also feature a reversible arm that allows for mounting on both round and square poles.
