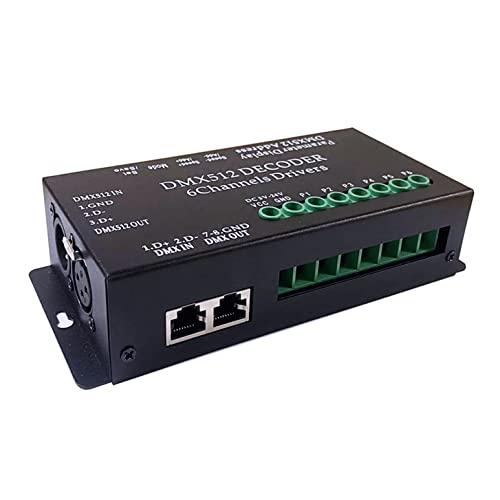

6 Channel PWM DMX512 Decoder (6-Channel DMX512 Decoder)

⭐ Key Features

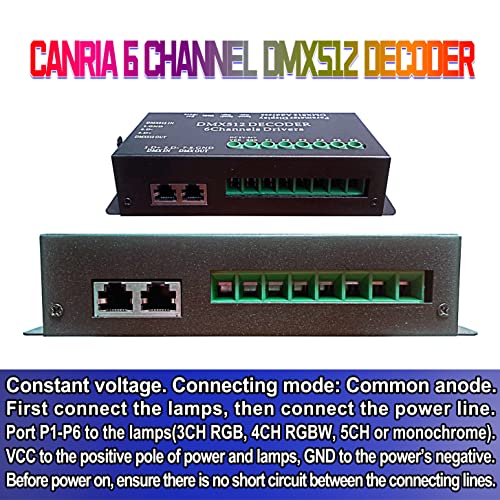

•Power Output: 6 channels with 10A per channel and 60A in total; constant voltage PWM output with common anode wiring, drives non-addressable RGB, RGBW, RGBWW or single - color LED strips, modules and wall washers on DC 5-24V (separate DC power supply required) - no built-in IC, not for addressable pixel strips

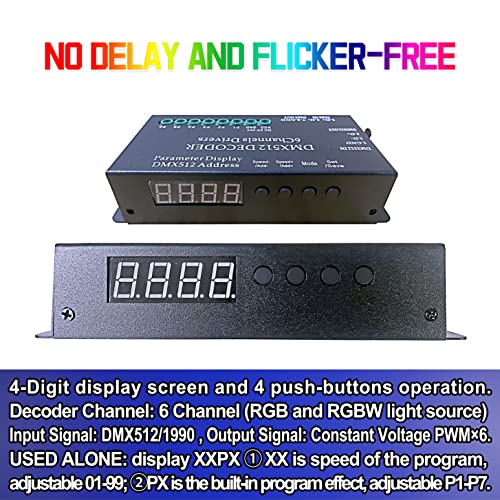

•4-Digit LED Display, No DIP Switch: the DMX512 address and built-in settings are shown on the LED display and set through 4 buttons (Speed-, Speed+, Mode, Set/Save); no DIP switches and no guessing - the screen always shows the current status

•Console Control Mode: with a DMX console connected, the display shows dXXX (start address 001-512, 6 channels mapped 1:1); press Mode to cycle 4 console modes - dXXX standard DMX, AXXX 8-channel mode (CH1-CH6 dimmer, CH7 selects 16 built-in effects, CH8 adjusts speed), CXXX 3-channel mode (output ports P4-P6 mirror P1-P3), EXXX 1-channel mode (all 6 channels follow channel 1)

•Standalone Control Mode: without a console, the decoder plays 9 built-in programs (P1-P9) - display shows XXPX, where XX is the speed (01 = fastest, 99 = slowest) and PX is the program (P0-P9); press Speed- / Speed+ to adjust the speed, Mode to switch programs, and Set/Save to store settings - they are kept after power off; P0 outputs no signal and keeps the lights off

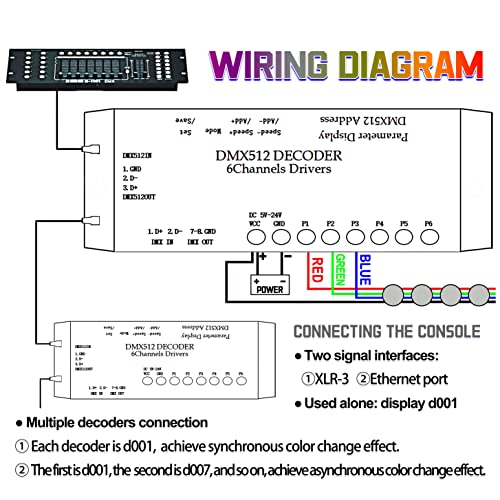

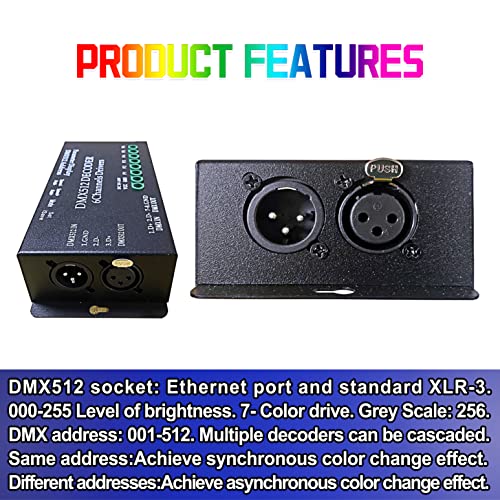

•Cascade and Wide Voltage: dual signal ports (XLR-3 and RJ45) for daisy-chaining multiple decoders - 6 DMX addresses each (d001, d007, d013; 8/3/1 per unit in the 8CH/3CH/1CH modes); set all units to d001 for synchronized color changes or different addresses for independent scenes; black metal housing with mounting tabs, working temperature -10°C to 45°C, for stage, church, wedding, bar, restaurant, retail, exhibition, cove, under cabinet, sign and event lighting

🛠️ Specifications

• Brand : CANRIA
• Size : 6-Channel DMX512 Decoder
• Material : Metal
• Unit : 1 Count
• Color : Black
• Included components : CANRIA 6-Channel DMX512 Decoder
• Item highlights : DC 5-24V Input, RGB RGBW, 4-Digit LED Display, Set Address via Buttons, No DIP Switch, Non-IC LED Strips, Stage & Event
• Number of items : 1
• Package quantity : 1
• Recommended uses for product : Stage Lighting
• Style : Modern
• Type : ELECTRIC_LIGHT
• Item dimensions : H: 1.6 / L: 6.3 / W: 3.1 (Weight: 0.88)
• Package dimensions : H: 1.8 / L: 7.5 / W: 3.6 (Weight: 0.97)
