20 Step Intelligent Motion Sensor Stair Lights Kit (20 Foot)
20 Step Intelligent Motion Sensor Stair Lights Kit (20 Foot)
Regular price
$574.99 USD
Regular price
$574.99 USD
Sale price
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Key Features

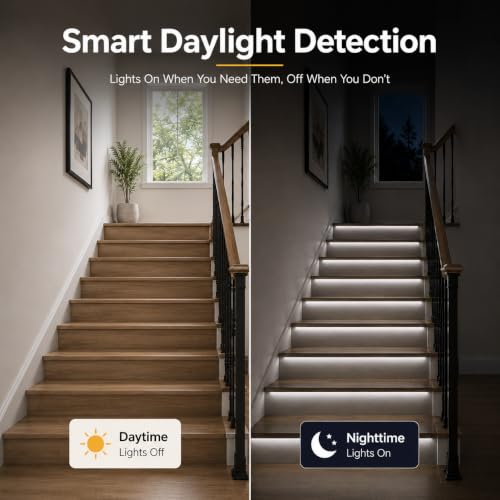

- 【Indoor Motion Sensor Stair Light Kit】Automatically detects your movement and turns the stair lights on and off. Brightness, lighting speed, and delay time can be adjusted to suit your preference. Includes threaded PIR sensors.
- 【20-Step, Adjustable for Fewer Steps】Designed for staircases with up to 20 steps. The number of stair lights can be easily adjusted for smaller stairways. These COB LED strips are only 0.31" wide and 0.1" thick, making them easy to hide under stair treads without taking up walking space.

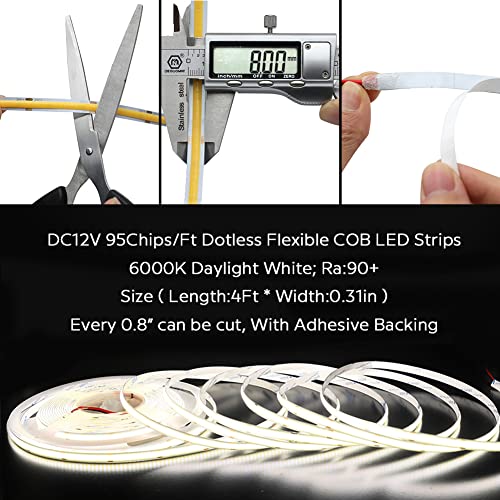

- 【RA90+ 6000K Daylight White, Cut-to-Fit COB Lighting】Uses safe low-voltage 47.2-inch COB LED strips as the stair light source. Bright, energy-efficient, and completely dotless. The adhesive-backed COB strips can be cut every 0.75ft to fit different stair widths. Suitable for stair widths from 1ft to 4ft. CRI 90+ provides clear, natural-looking illumination for everyday use.

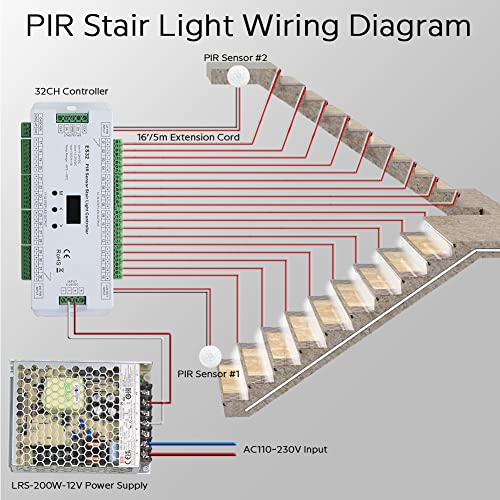

- 【Plug and Play, No Complicated Wiring】Simply attach the COB LED strips to the stair treads, place the two motion sensors, connect the strips to the ES32 controller using the included quick connectors, and plug the 200W UL-Listed Mean Well power supply into a standard AC outlet. No programming or complicated wiring required.

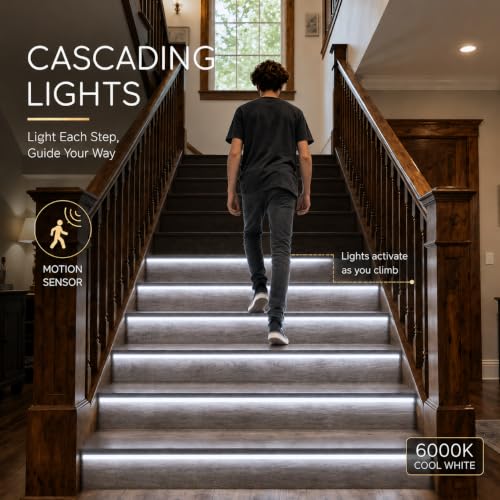

- 【Multiple Stair Lighting Motion Modes】Choose from four lighting modes: 1) One-by-One On; 2) Group On; 3) One-by-One Off; 4) All On / All Off. The ES32 controller also supports addressable LED strips on handrails or stair sides for flowing light effects. (This kit includes monochrome stair strips only. Addressable LED strips are sold separately.)
Specifications
| Brand | SuperlightingLED |
| Manufacturer | superlightingled |
| Model | SCSSLKIT-12V-COB |
| Material | Metal |
| Color | 6000k |
| Size | 20 Stairs |
| Style | American |
| Product Type | STRING_LIGHT |
| Included Components | LED Strips |
| Recommended Uses | Indoor only |
| Special Features | ['Motion Sensor'] |
| Item Type Keyword | led-strip-lights |
| Item Dimensions | H: 3 / L: 1194 / W: 8 (Weight: 3243) |
| Package Dimensions | H: 135 / L: 257 / W: 251 (Weight: 3289) |
| unit | 20 Foot |
Description
This motion sensor indoor stair lights kit includes everything you need when you want to update your stairs. You do not need to buy any accessory more. It is Novice Friendly, and even if you are not a professional electrician, you can do it well.
Note:
1. Please do not change the wiring, avoiding wiring errors.
2. The two PIR motion sensors are installed at both ends of the stairs. When installing the PIR sensor, make sure that the sensing direction in front of it is not blocked.
3. More information on the installation of this indoor stair motion senser lights, Contact us.
4. Please make sure the number of steps is the same as the number set by the controller, otherwise there will be a delay at the other end.

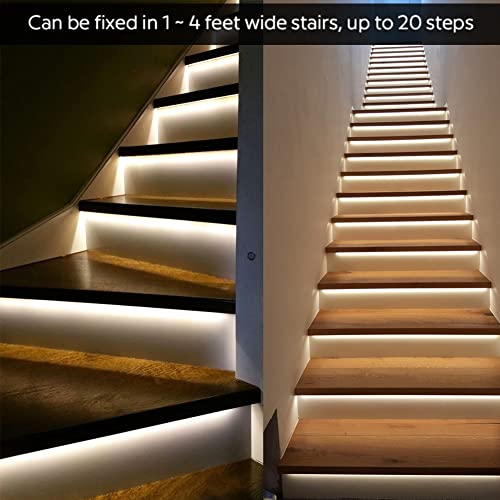

5. The length of the strip can be cut, which is suitable for steps 1-4 feet wide. The number of steps can also be adjusted through the controller. For example, your stairs are 14 steps 3 feet wide, and this kit is also suitable.
Specifications
LED Voltage: DC12V
LED Color: 6000K Pure White
Color Rendering Index(CRI): 90+ (High)
Stair Width(Strip Length): 1.2m/4ft (cuttable)
Number of Steps: 20pcs (Adjustable, also suitable for stairs with less than 20 steps)
LED Light Source: COB LED Strip

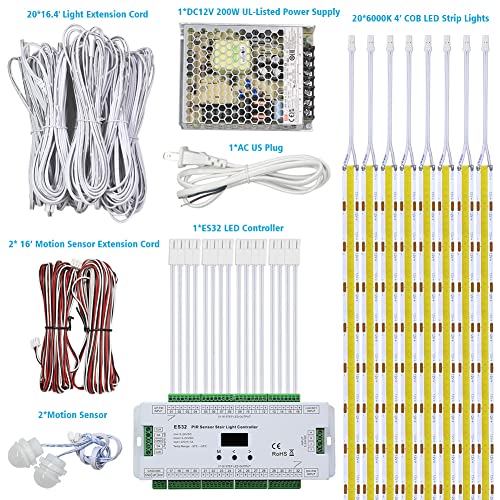

Package List:
20x 4Ft COB LED Strips
1x ES32 LED Stair Lighting Controller
4x Motion Sensor (2 spare)
2x 16.4ft Motion Sensor Extension Cord
20x 16.4ft DuPont Extension Cord
1x Meanwell 200W 12 Volt DC Power Supply
1x US AC Plug
