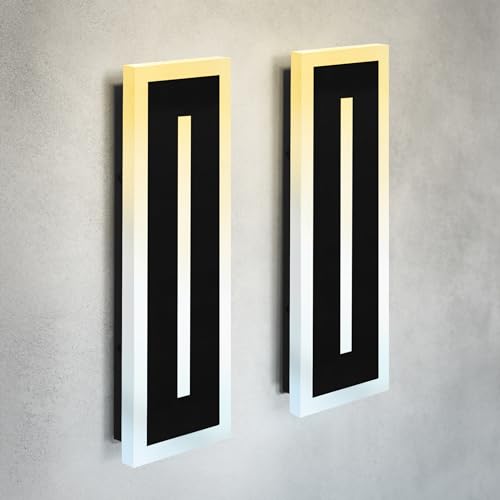

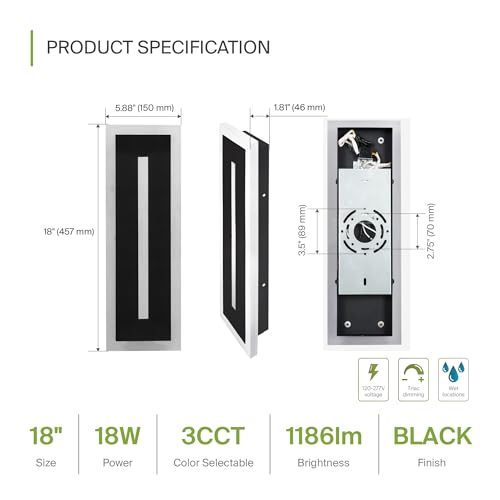

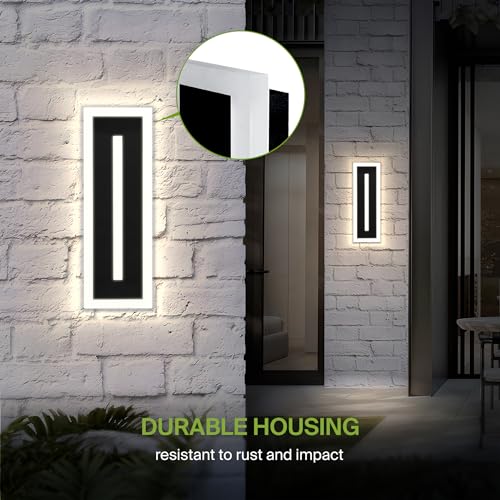

DESIGN. 18 inch linear wall sconce, steel body in black with an acrylic diffuser, 5-7/8" x 1-13/16" in section. 350 degree spread for front doors, porches, patios, corridors and walkways, indoors and outdoors. 2 fixtures in the box, all identical.

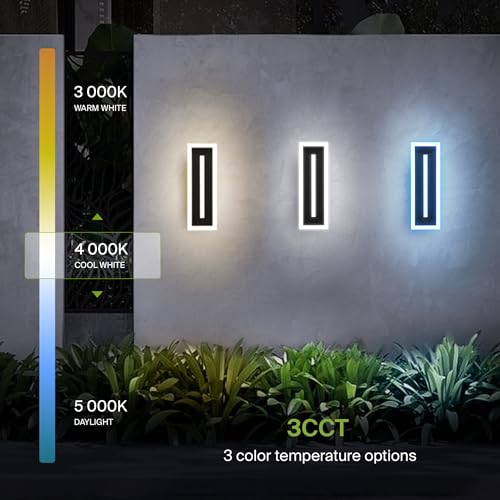

COLOR SELECTABLE. 3000K, 4000K and 5000K on one fixture. The selector is set before the sconce goes on the wall - once it is mounted the switch is no longer reachable.

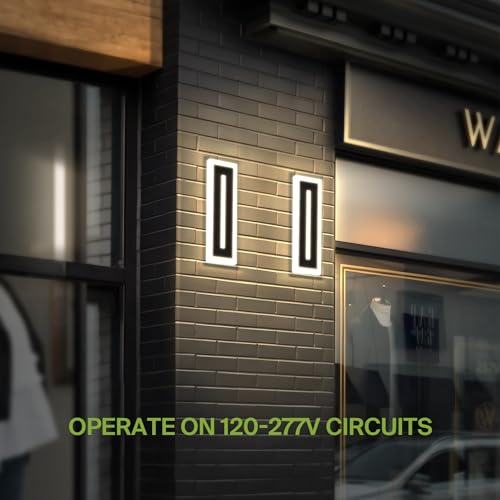

DIMMING. TRIAC forward-phase dimming from 10 percent to 100 percent on a standard wall dimmer. 18W, 1099 lm at 3000K, 1183 lm at 4000K, 1186 lm at 5000K, CRI above 80, 120-277V, so one fixture covers both residential 120V and commercial 277V circuits.

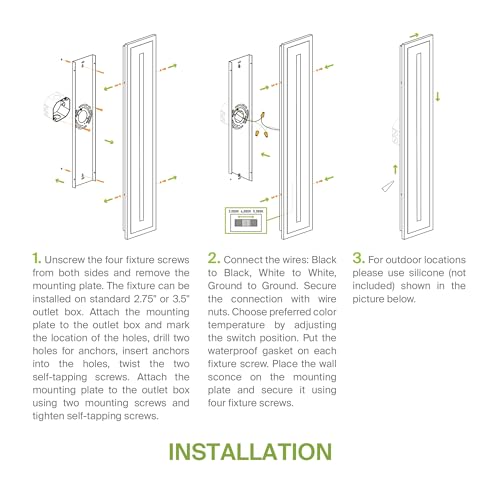

INSTALLATION - hardwired 120-277V on a standard 2.75 inch or 3.5 inch outlet box, by a qualified electrician. Wires connect black to black, white to white and green to green. IMPORTANT: the waterproof gaskets go under the fixture screws - without them the seal that carries the wet location rating is broken. In the box: fixture, mounting plate, screws, 3 wire nuts, 4 waterproof gaskets, 2 anchors.
ADVANTAGES: ETL listed 4001256, wet location rated, rated life 50,000 hours, operating range -40F to 113F, 5-year limited warranty from ASD.
