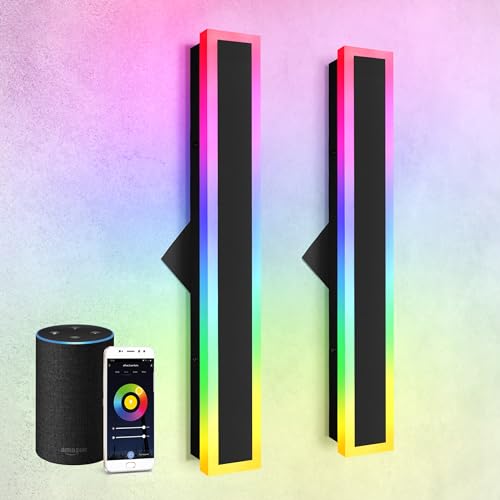

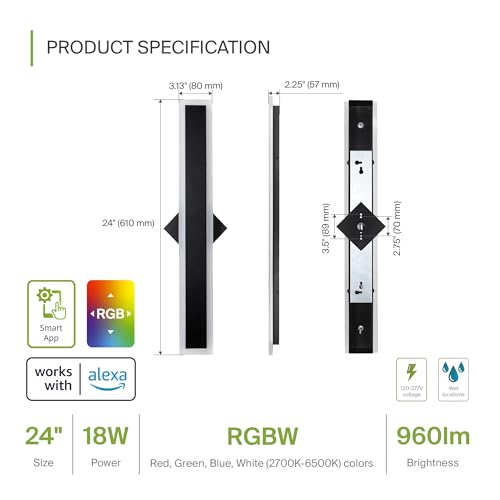

DESIGN. 24 inch linear wall sconce, steel body in black with an acrylic diffuser, 3-1/8" x 2-1/4" in section. 350 degree spread for front doors, porches, patios, corridors and walkways, indoors and outdoors. 2 fixtures in the box, all identical.
SMART RGBW. Red, green and blue plus tunable white from 2700K to 6500K, 16.7 million colors. Scenes and schedules run from the ASD Smart App and the fixture answers Alexa, Google Assistant and Siri.

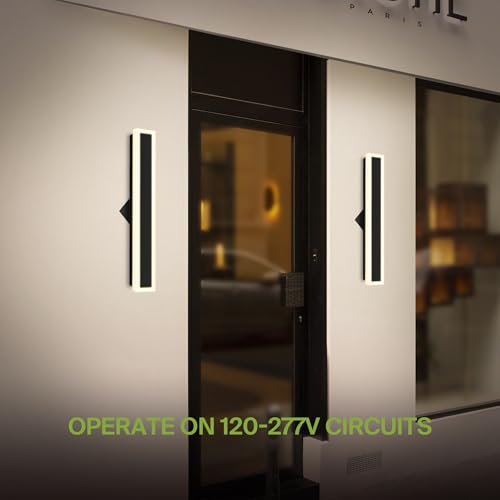

OUTPUT. 18W and 960 lm in white mode, CRI above 80, 120-277V. Brightness and color are set in the app - there is no wall dimmer on this version.

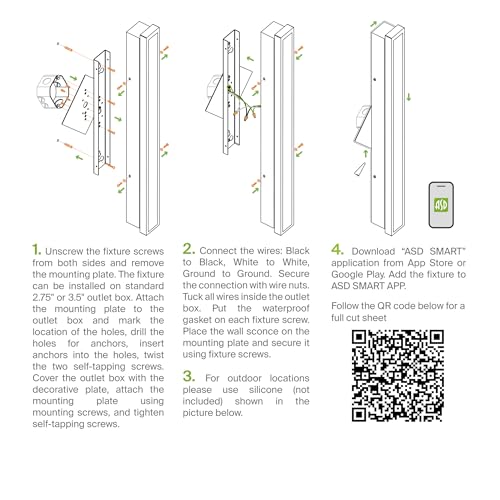

INSTALLATION - hardwired 120-277V on a standard 2.75 inch or 3.5 inch outlet box, by a qualified electrician. IMPORTANT: the waterproof gaskets go under the fixture screws. Skip them and the seal is broken, which is what the wet location rating depends on. In the box: fixture, mounting plate, metal plate, mounting and self-tapping screws, 4 fixture screws, 3 wire nuts, 4 waterproof gaskets, 2 anchors.

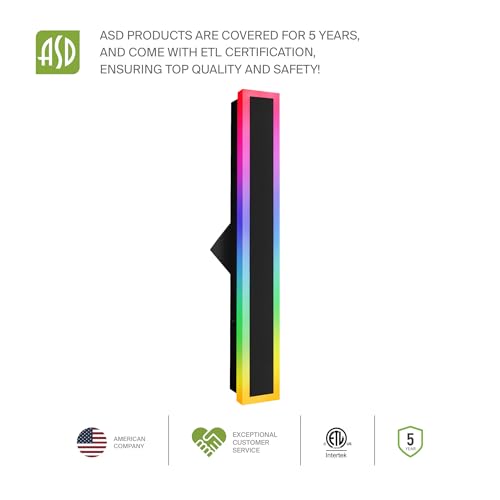

ADVANTAGES: ETL listed 4001256, wet location rated, rated life 50,000 hours, operating range -40F to 113F, 5-year limited warranty from ASD.
