CONSTRUCTION: Solid die-cast aluminum construction with frosted TIR lens that provides an even and bright illumination while cutting down on glare.
CONSTRUCTION: Solid die-cast aluminum construction with frosted TIR lens that provides an even and bright illumination while cutting down on glare.

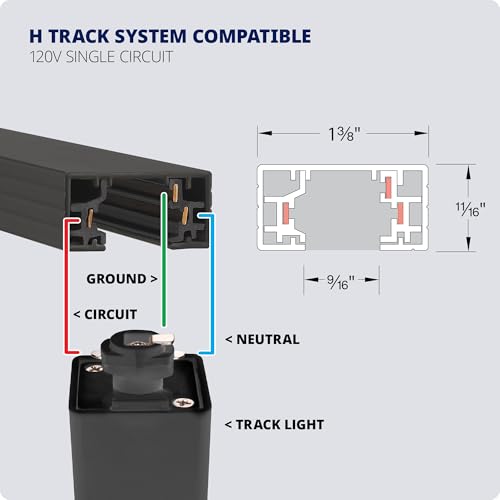

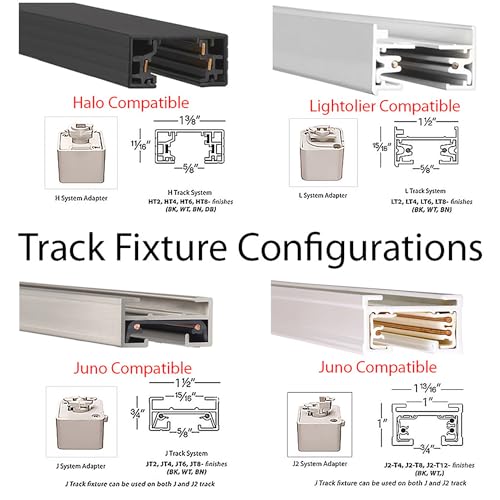

COMPATABILITY: Available in H, J, and L style track systems. H-style is a 3-wire track system, J and L styles are 2-wire track systems. Order according to your track compatability, works with most track systems with the compatible style.
DIMMING: Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC (standard LED/CFL) dimmer; Dims down 10% with a dimmer.

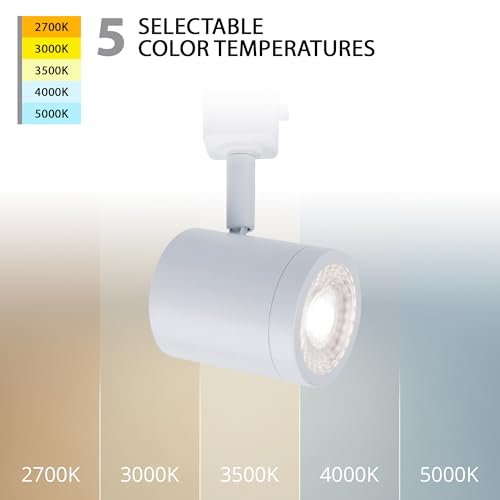

SPECIFICATIONS: High Powered LED, Power: 9W, Delivered Lumens: 865 LM, CRI: 90+, Rated Hours: 50,000 LM-70, 5-CCT Color Temperature Selectability: 2700K-3000K-3500K-4000K-5000K.
STANDARDS: ETL & cETL UL # 1598 listed for Dry locations. Energy Star 2.0 Certified, Title 24 JA8-2016, Title 20, and ADA compliant.
Specifications
Brand
WAC Lighting
Manufacturer
WAC Lighting
Model
H-8010-CS-WT-6
Material
Aluminum
Color
White
Size
H-Style 3-Wire (6 Pack)
Style
5-CCT Selectable 2700K-3000K-3500K-4000K-5000K
Product Type
LIGHT_FIXTURE
Included Components
Light Fixture, Instructions
Recommended Uses
Commercial
Special Features
['Smooth and Continuous Dimming to 5%.', 'Easy to Install, 5-CCT Color Temperature Selectable.', "Energy Efficient LED's with High Lumen Output.", 'Available in H, J, and L Styles for Cross Compatability with Popular Track Systems.', 'Available in H, J, and L Styles for Cross Compatability with Popular Track Systems.']
Item Type Keyword
track-lighting-heads

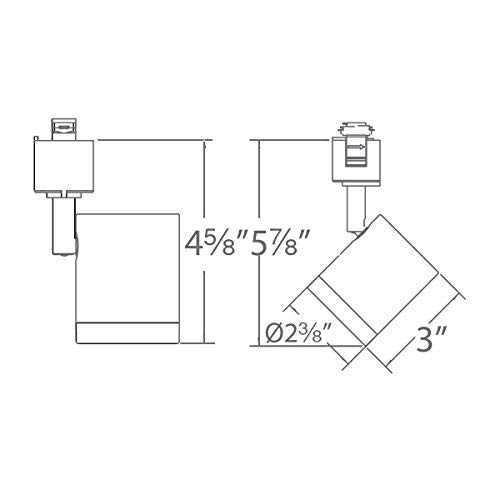

Item Dimensions
H: 121 / L: 149 / W: 76 (Weight: 5380)
Package Dimensions
H: 203 / L: 305 / W: 254 (Weight: 2722)
unit
6 Count
Description

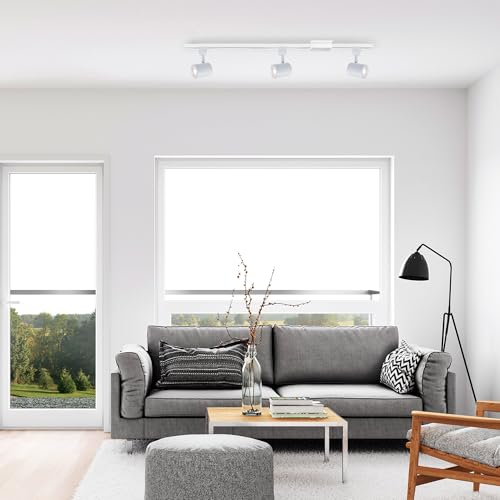

The Charge 8010 track luminaire offers superior light output in a small, unobtrusive design. Developed for residential spaces and lower-mounted commercial applications.
