VERSATILE OUTDOOR LED LIGHT: The Lithonia Lighting EAX offers a complete area lighting package to replace 50W to 400W HID area lights; This versatile exterior light features adjustable brightness, switchable white light color, and 4 optics patterns

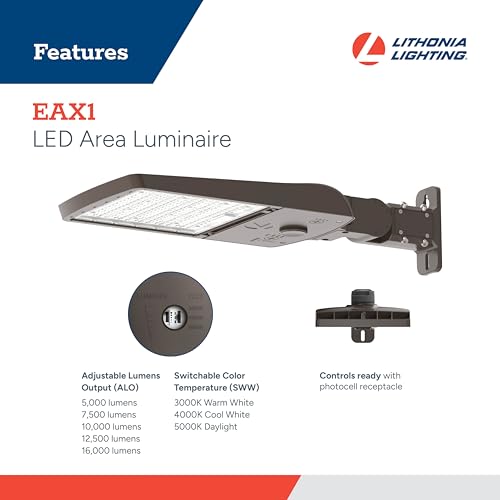

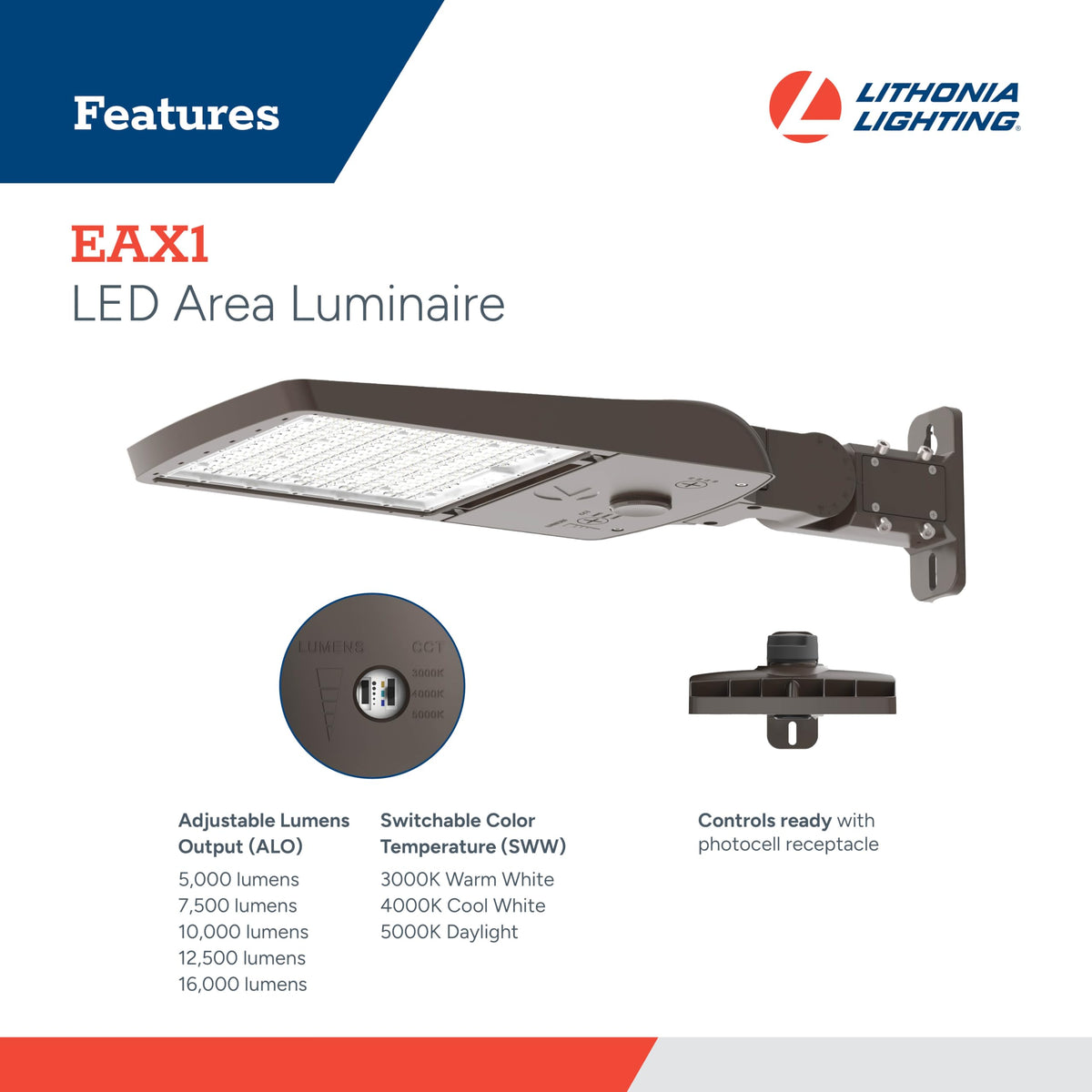

POWERFUL BRIGHT LED LIGHT: Select from 5 brightness options ranging from low (5,000 lumens) to max (16,000 lumens); Three light color options (3000K warm white, 4000K cool white, 5000K daylight) to meet the needs of your environment

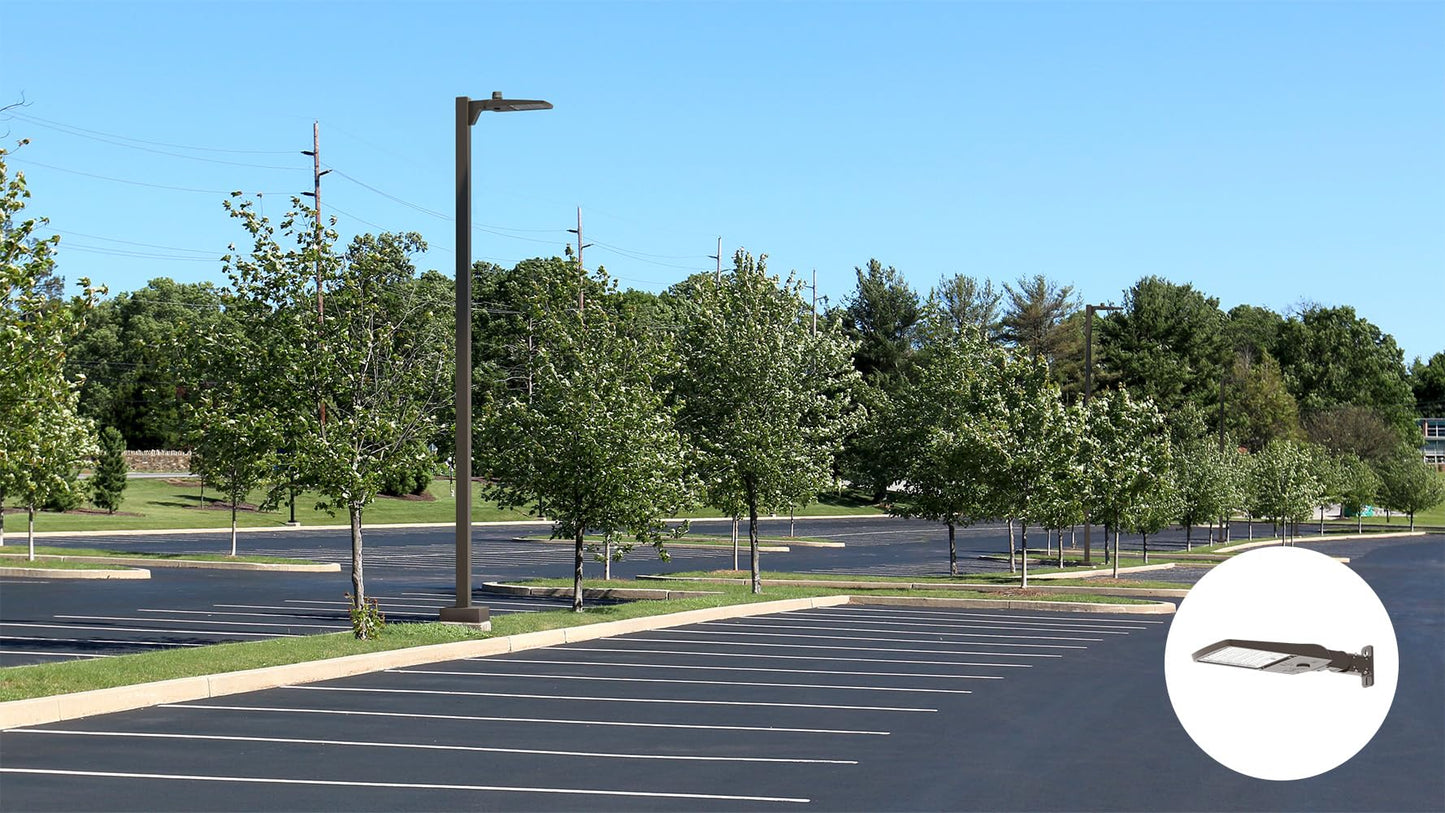

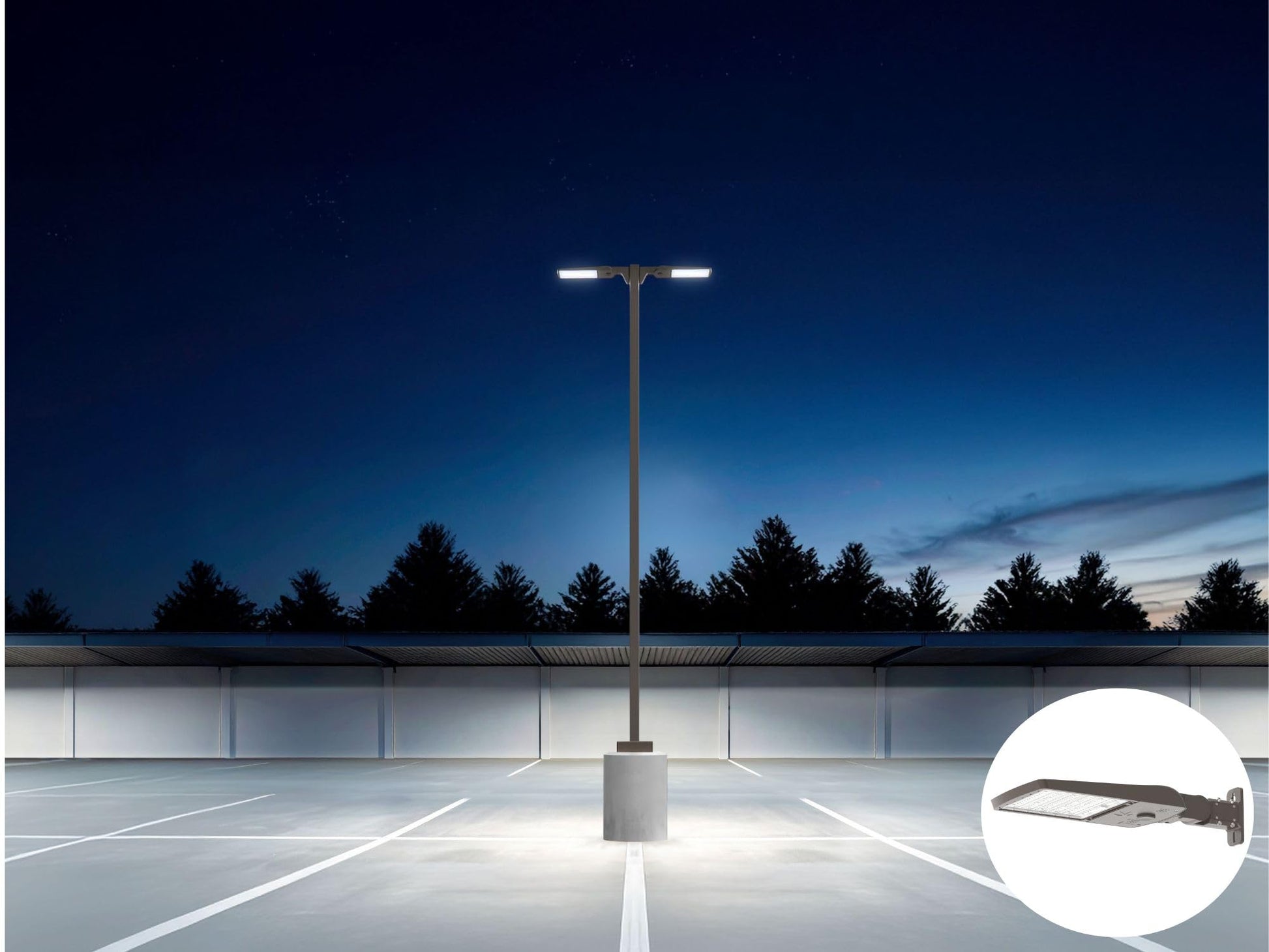

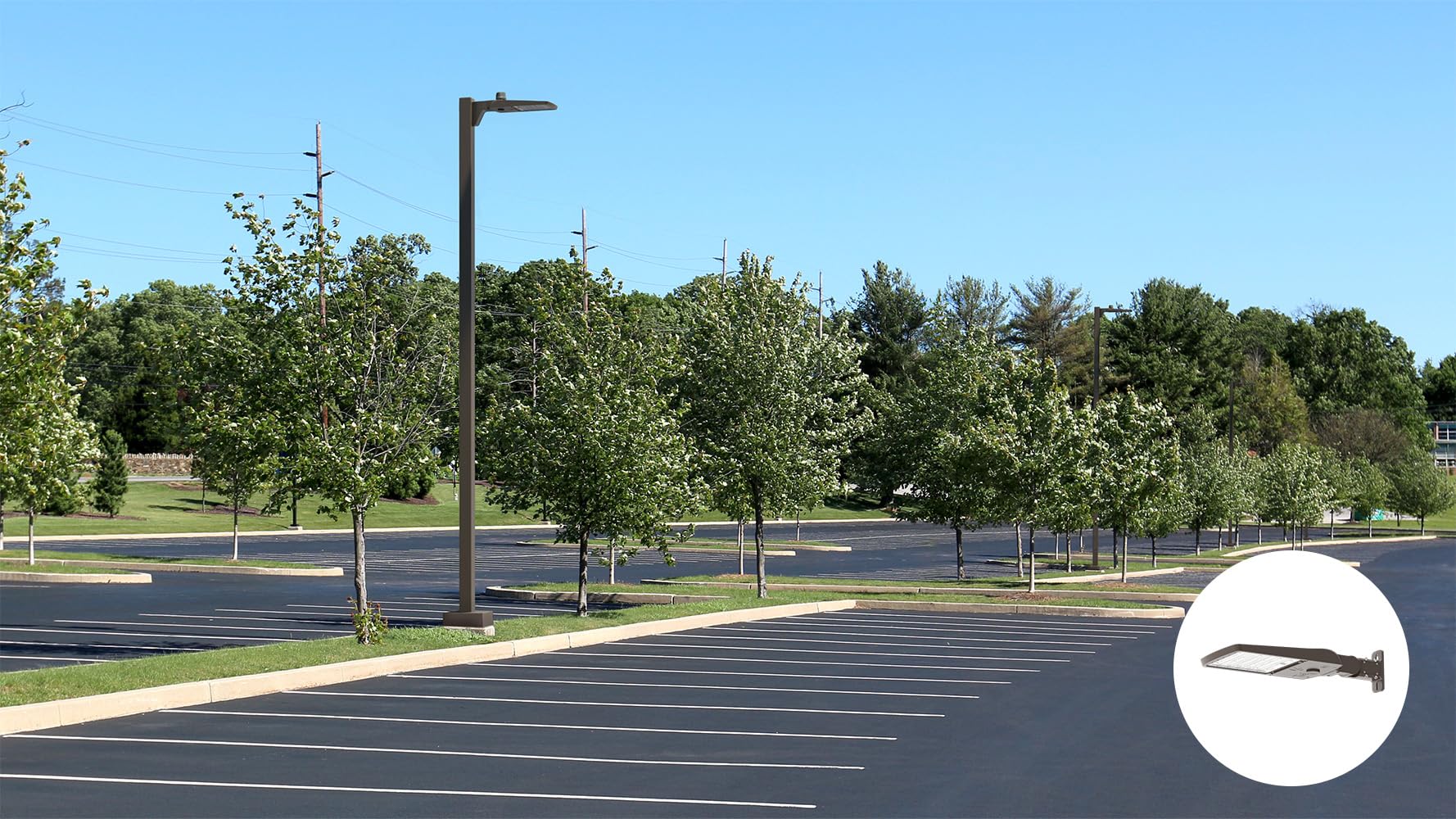

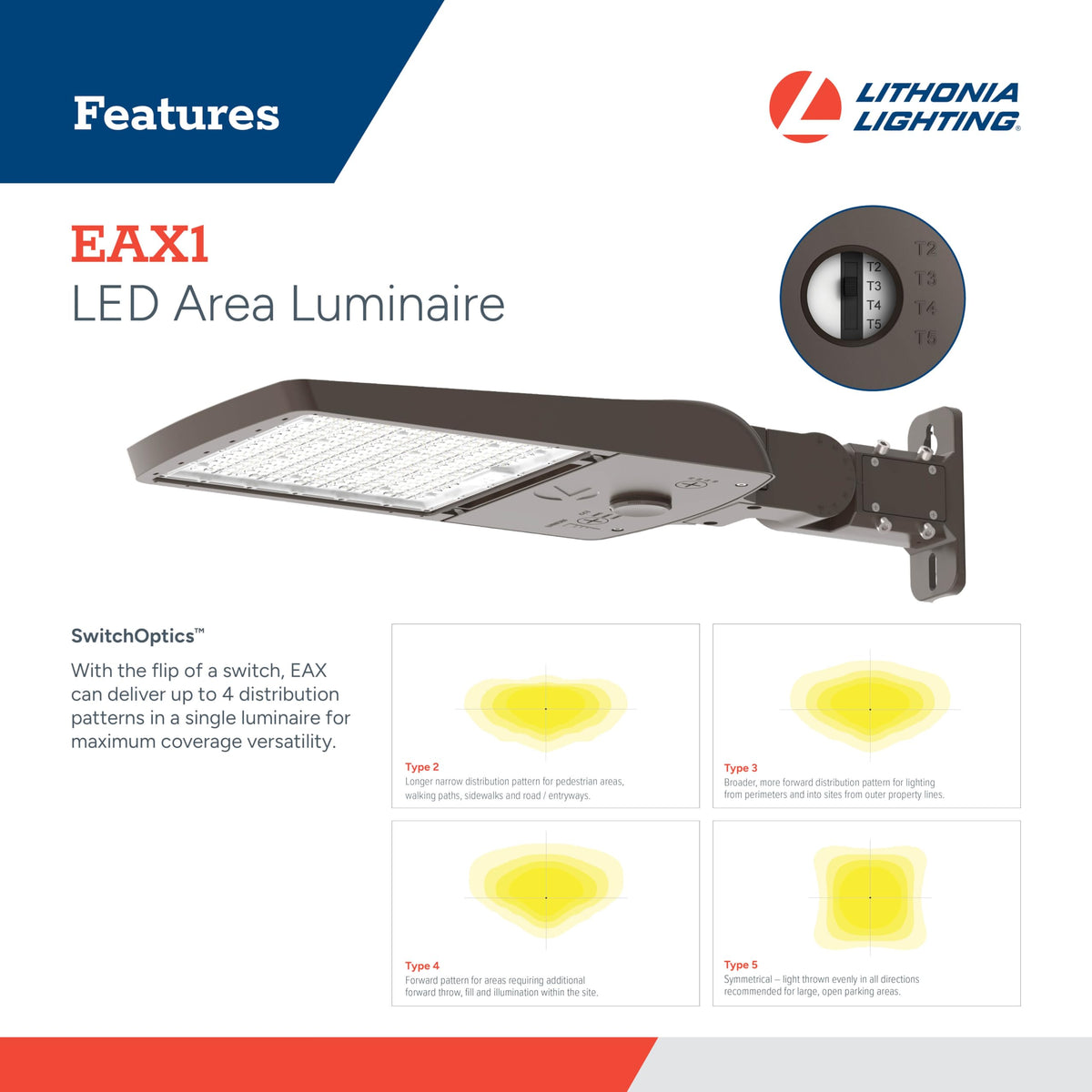

4 LIGHT DISTRIBUTION PATTERNS: SwitchOptics technology provides four distributions in a single LED light fixture without the need to change a lens or fixture; Set the switch to Type II, III, IV, or V to light areas like parking lots and sidewalks

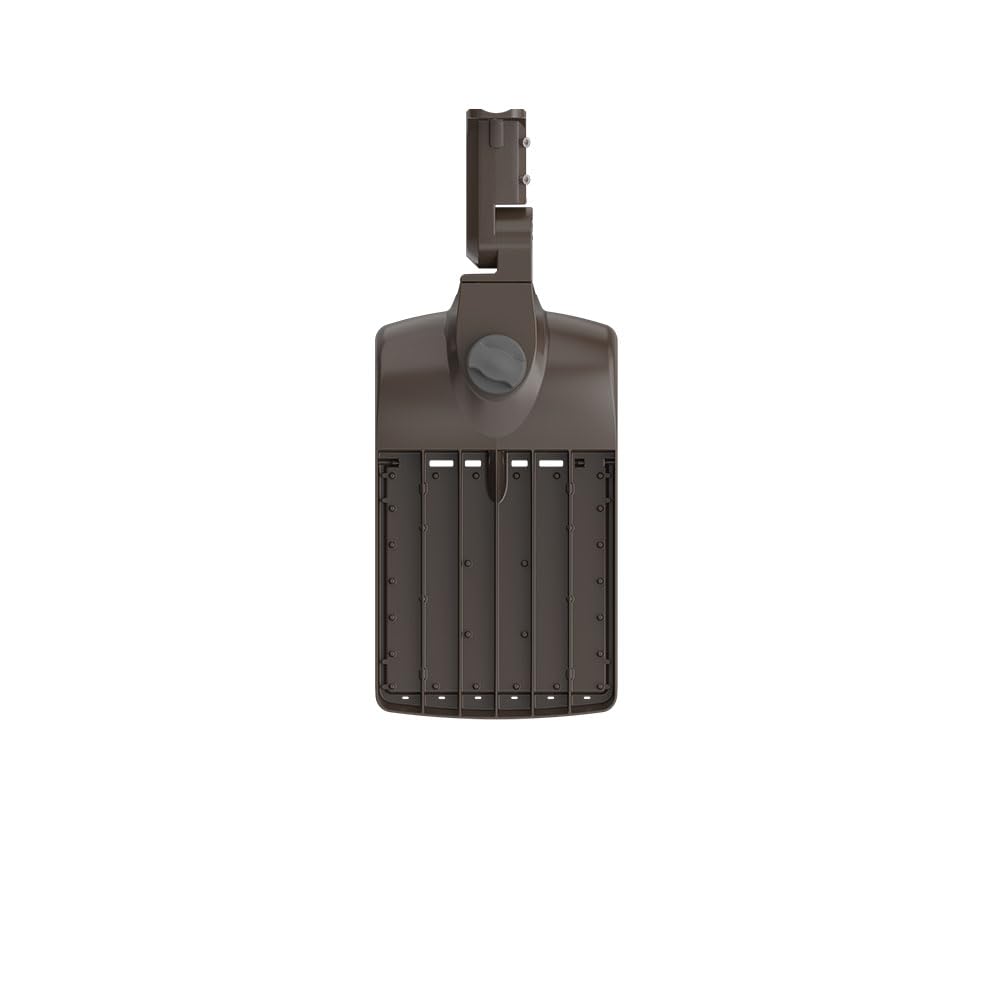

DURABILITY: The outdoor light has a rugged die-cast aluminum housing and features heat-dissipating fins for thermal management; IP66-rated optics are sealed against dust and moisture; Powder coat finish resists corrosion and weathering; UL wet listed

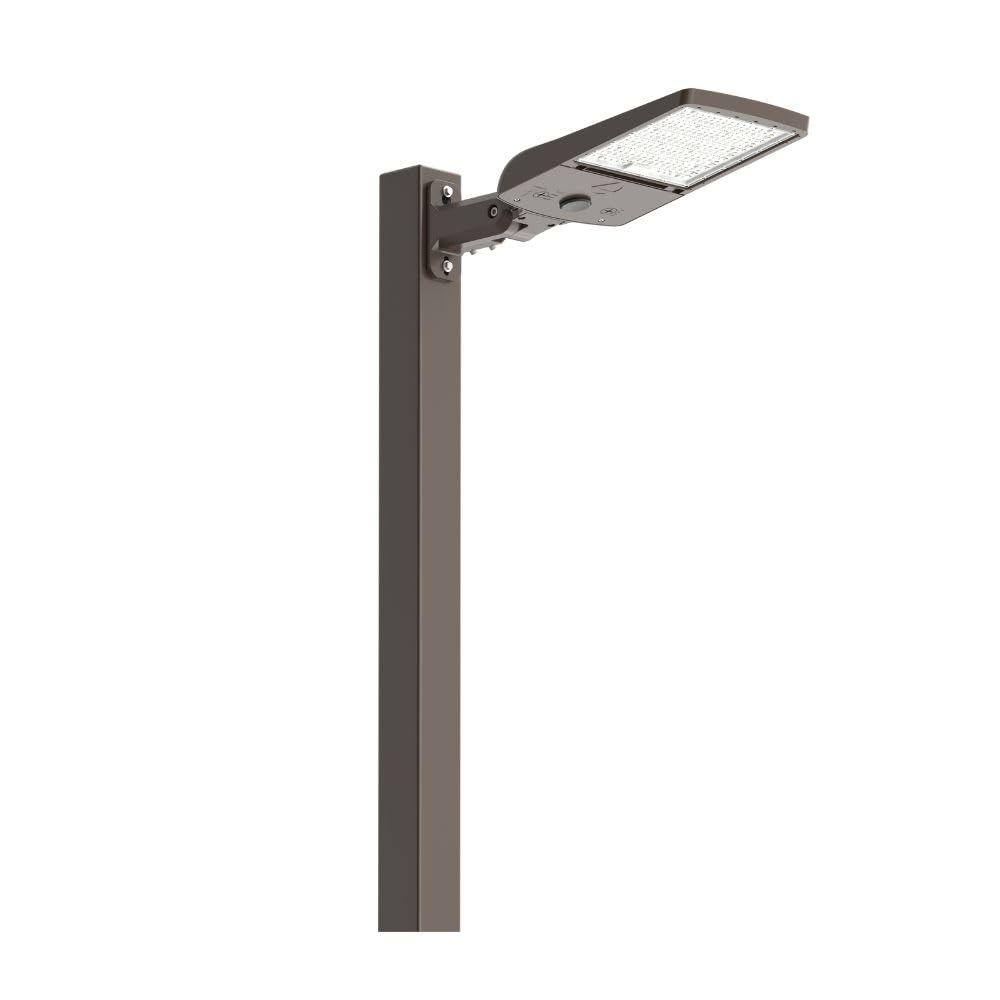

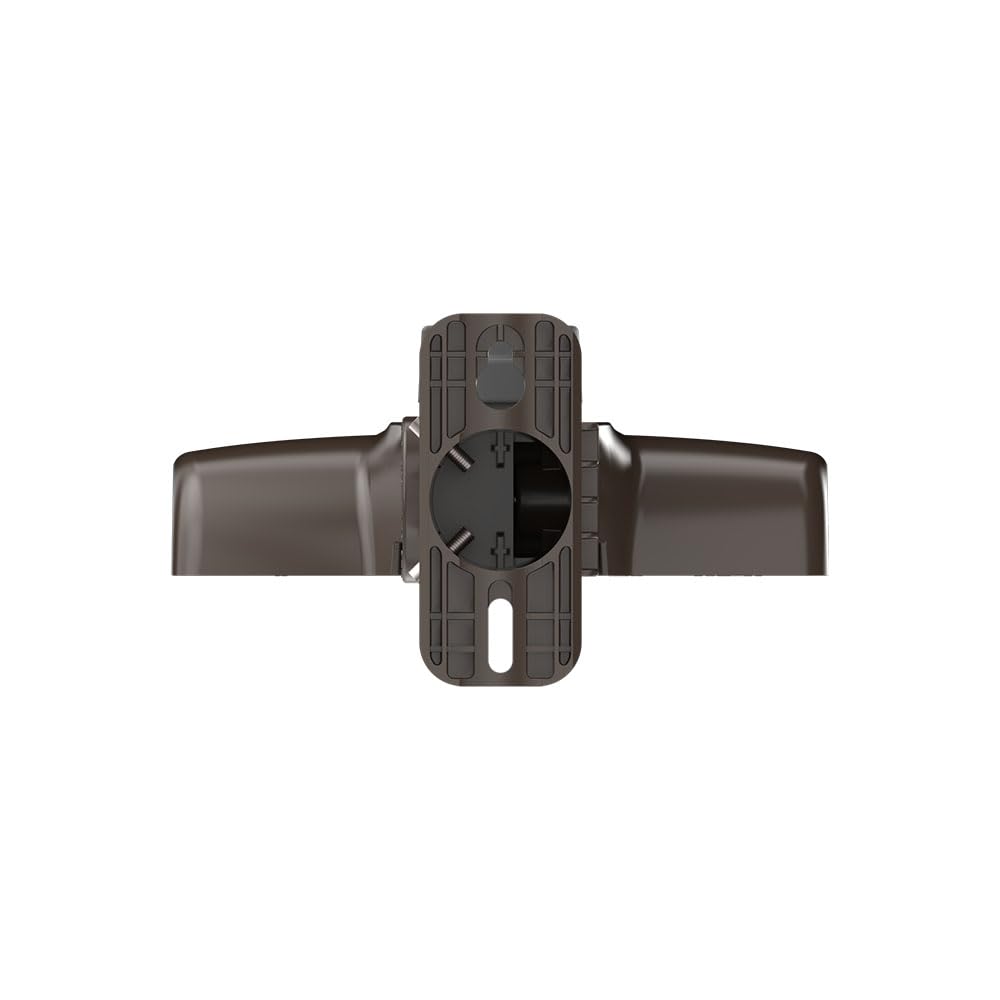

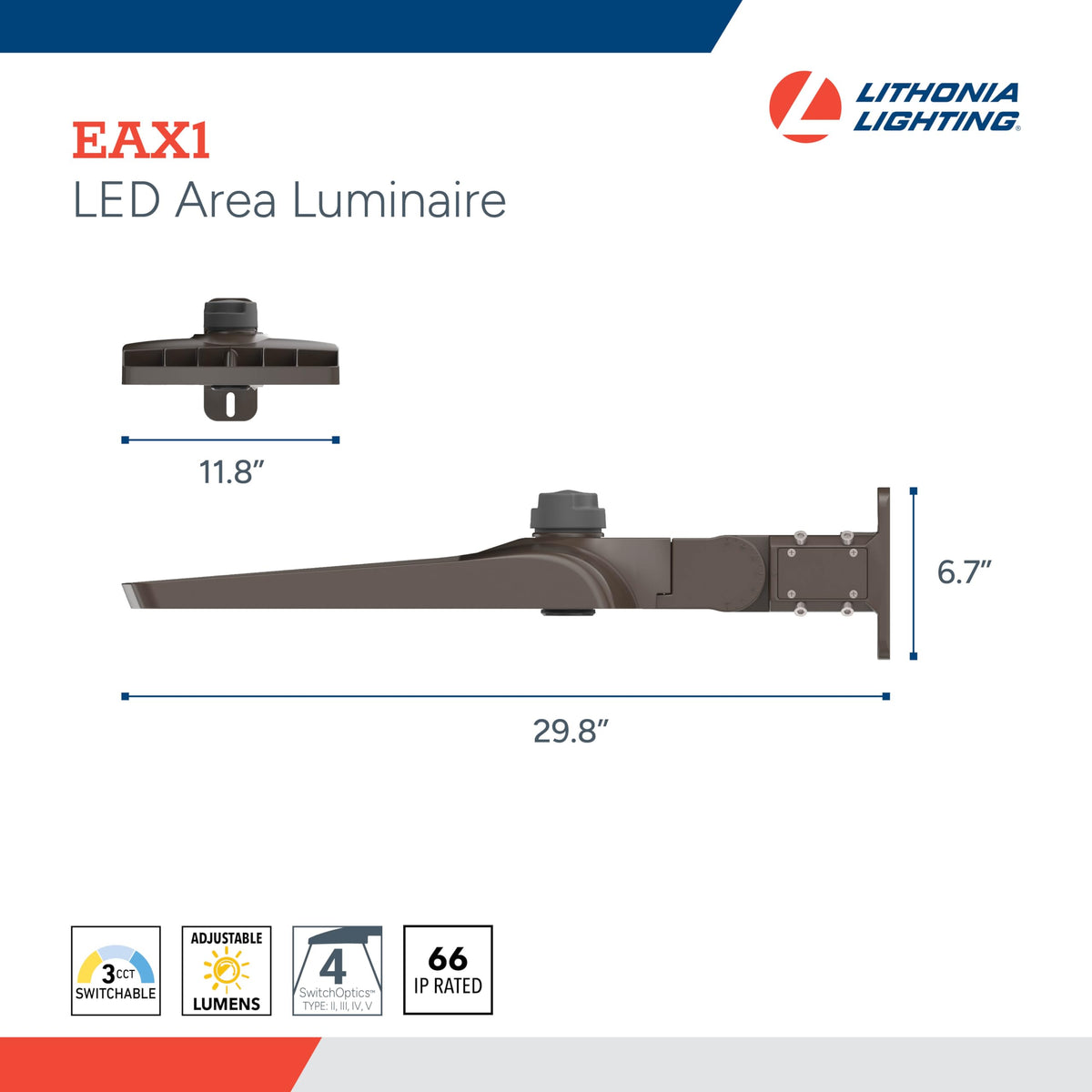

INSTALL AND SPECS: UPM universal pole mount with multi-use versatile adjustable tilt arm that mounts to round and square poles; includes 2-3/8" built in pole top tenon fitter; Dimensions 29.8" L x 11.8" W x 6.7" H; UVOLT 120–347V
Specifications
Brand
Lithonia Lighting
Manufacturer
Acuity Brands Lighting
Model
EAX1 ALO SWW2 SO UVOLT UPM PER DDB
Material
Aluminum
Color
Bronze
Size
29.8" L x 11.8" W x 6.7" H
Style
Parking Lot Light
Product Type
LIGHT_FIXTURE
Included Components
LED Lens
Recommended Uses
Commercial
Special Features
['Adjustable Color Temperature', 'Waterproof', 'Energy Efficient', 'Dimmable']
Item Type Keyword
commercial-street-and-area-lighting
Item Dimensions
H: 170 / L: 770 / W: 356 (Weight: 7711)
Package Dimensions
H: 178 / L: 775 / W: 356 (Weight: 7824)
unit
Description
Do more with less. The EAX family is designed to simplify outdoor lighting, delivering flexibility and performance across every project. Reliable, versatile, and ready for sites of any size, the EAX1 LED Area Luminaire from Lithonia Lighting provides the best combination of switchable technology for versatility in lighting large outdoor areas. Dial in exactly the light you need with 5 selectable brightness options from 5,000 to 16,000 lumens and 3 color temperatures (3000K warm white, 4000K cool white, 5000K daylight). SwitchOptics technology provides delivers four light distribution (Type II, III, IV, V) options in one housing that can be changed with a simple switch. There is no need to replace lenses or fixtures. This makes a single light fixture capable of a variety of needs for LED parking lot lights, sidewalks, and other ourdoor areas. With over 60 field-configurable options in a single SKU, this area lighting solution truly adapts to your project needs and reduces the need for distributors, installers, and property managers to stock different products for different needs. EAX offers a multi-use versatile adjustable tilt mounting arm that mounts to 3.0" min. O.D. round and 3.5" min. square poles and slip fits onto 2-3/8" pole top tenons with a no-drill feature that accommodates some pre-existing pole drillings. It is a great choice for lighting new sites and retrofit, replacing 50W to 400W HID area luminaires, while providing long service life and fast payback. UVOLT driver (120–347V) ensures flexible power compatibility. Rated −40°C to 40°C ambient and UL Wet Listed. DLC Premium qualified and backed by a 5-year limited warranty, ideal for wall or pole area-lighting applications.
